Rangimax Golf Rangefinder

1. Ranging Method:Semiconductor laser ranging

2. Ranging Distance:5-600M/5-1000M

3. Ranging Accuracy:±1M/yard

4. Ranging Display Mode:In-view LCD display

5. Exit Pupil Diameter:3.1mm

6. Exit Pupil Distance:12.1mm

7. Working Temperature:-20~50℃

8. Operating Humidity:≤80%

9. Laser Safty:905nm Class 1 laser, laser output<5mw

10. Power Supply:built-in Li-ion battery (3.7V)

11. Focusing Mode:Manual Focusing(Rotating mirror）

12. Eyepiece Lens Quality:Multilayer Coated

13. Magnification:6.5X

14. Product Size:96*34*67mm

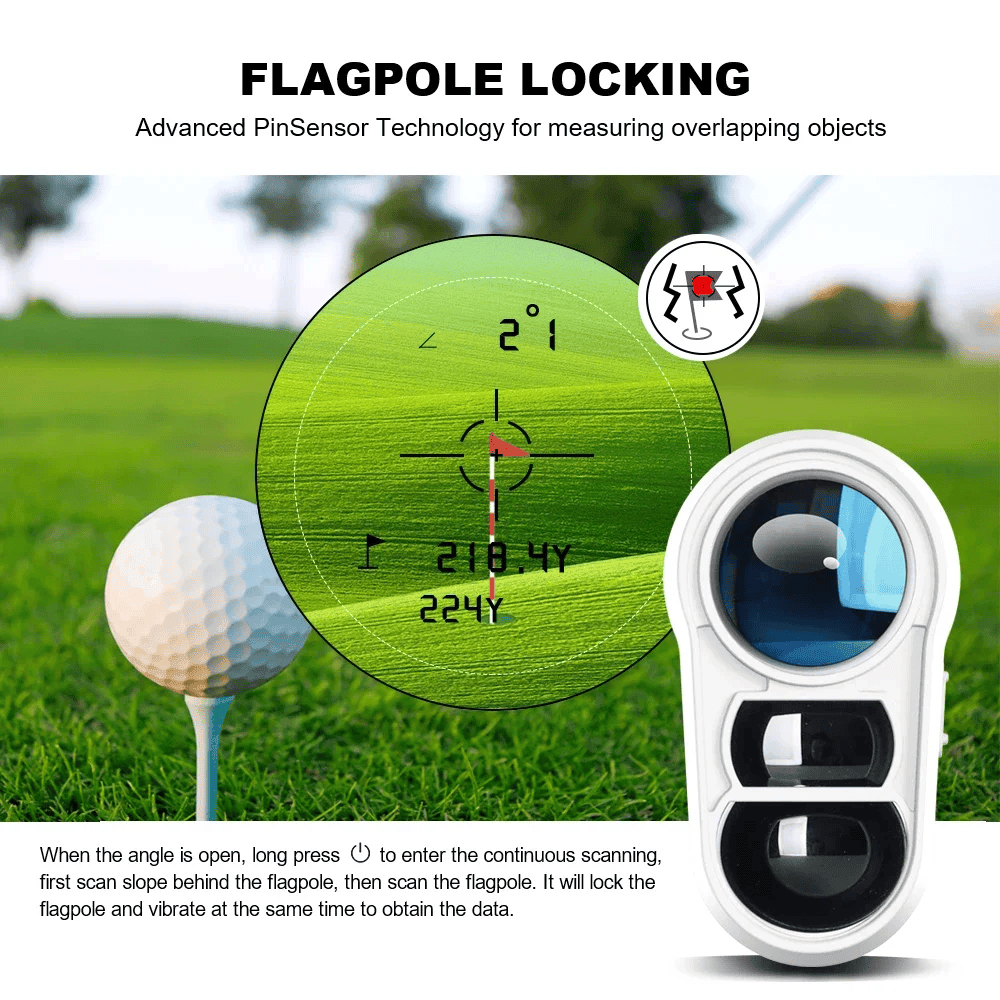

How does the rangefinder cause the lock fag to vibrate?

In Golf Mode.

1. measure the background of the slope behind the flag.

2. Press and hold the Measure button (to enter Scan Mode) and slowly move from the background toward the flag. The rangefinder will recognize the flag and the flag logo will flash and vibrate.

3. The distance to the flag and the slope compensation distance are displayed.

You can try again as mentioned above; if you have any other questions, please do not hesitate to contact me and we will reply to you as soon as possible.
